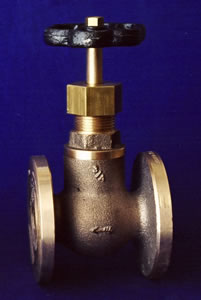

3040 Stop Valve
UNCOMPROMISING QUALITY AND SUPERIOR PERFORMANCE
| Connections | : | Flanged BS10 Table – E Drilled / Undrilled |
| Body & Cover | : | Bronze to BS 1400 LG2 – C |
| Valve & Seat | : | Renewable 410 Stainless Steel |
| : | Aluminium Bronze for Marine Use | |
| Ratings | : | 689 Kpa at 208 C Saturated Steam |
| : | 1378 Kpa at 38 C Water, Oil or Gas | |
| Construction | : | Rising Spindle, Screwed Cover |
| Services | : | Low Pressure Steam Services |
| Manufacturing Standard | : | BS5154 – 1991 |
| Flanges & Drilling | : | Flanges can be supplied drilled to your specifications |
| Spares | : | Complete range of spares available |
| Re-packing | : | Valves can be re-packed under pressure when wide open |
| Size | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
|---|---|---|---|---|---|---|---|
| A | 98.8 | 117.4 | 127 | 143 | 178 | 200 | 203 |
| B | 101.6 | 114.3 | 120.6 | 133.3 | 152.4 | 165 | 184.1 |
| C | 9.6 | 9.6 | 12.7 | 12.7 | 14.3 | 14.3 | 14.3 |
| D | 158 | 158 | 158 | 195 | 203 | 254 | 265 |
| Kgs | 3.6 | 5 | 6.5 | 9 | 12 | 16 | 20 |
